Champward CW-364 PS System
Structural Spray

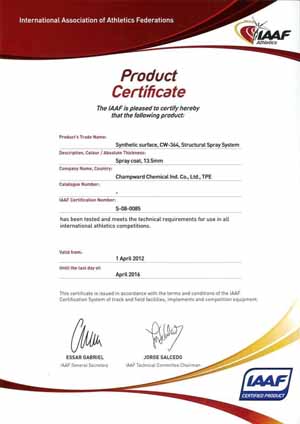

   The performance specifications of the System is accredited with the IAAF Certified Product
 for track surface.




      S-08-0085



  Synthetic Surface of Champward CW-364 PS System

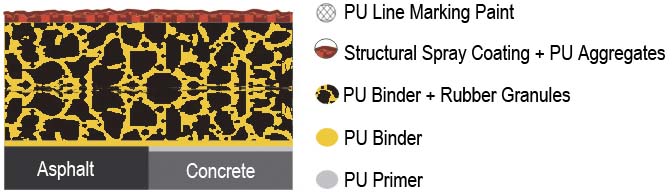

   Schematic Sections:


   Descriptions:
   This System use one-component moisture-curing PU binder to mix with rubber crumbs and
   spread by paving machine.  After cure, athletic track finish coatings which containing fine
   PU aggregates are sprayed by a suitable spray machine.  This System is porous and
   substantially cost saving although less durable in use.  When well-installed and properly
   maintained, the product life can be expected more than 5 years.  The performance
   specifications of the System is tested by IAAF certified laboratory and accredited with the
   IAAF Certified Product for track surface.


   Need further information like "Materials Calculation Sheet" or "Installation Procedure",
   Please contact us!
